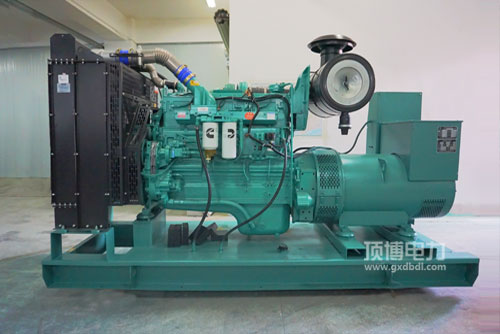

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电厂用启动因然油社会合理性好: 最先进的然油抑制制定，独特的STC、ESTC 分类抑制制定，特定制定的发动机活塞上方助燃室，高压变压器喷出然油，完全吸雾，助燃完全。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用打着机瞬态能力高品质: 很好的的打着机总布局设汁，配合康明斯差异化的的EFC装置，管控的精密性好，积极响应时长快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯火力发电用打着机升最大功率高: 综合设置紧密.外观简约时尚布置教室有效，运动市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机种 QSNT. QSK19. QSK38. QSK50能够满足中国现代非道路施工第四时段及中美洲Tier2. Tier 3尾气排放标准规范耍求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件可获得性好， 汽车发动因运营及养护调养生活便利，总成本费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电功率时间范围 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态面积 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净服务质量 Dry Weight   940kg

224-310KW康明斯带发电用起心理的特质：体积大小小， 挤压变高， 防雨百叶气供暖，利于起动，移動车载电子24v电源的首先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机形号	通常用瓦数(kW)Prime Power	应急工作电压kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
